How to Test a 2-Wire Permanent Magnet Trim Motor

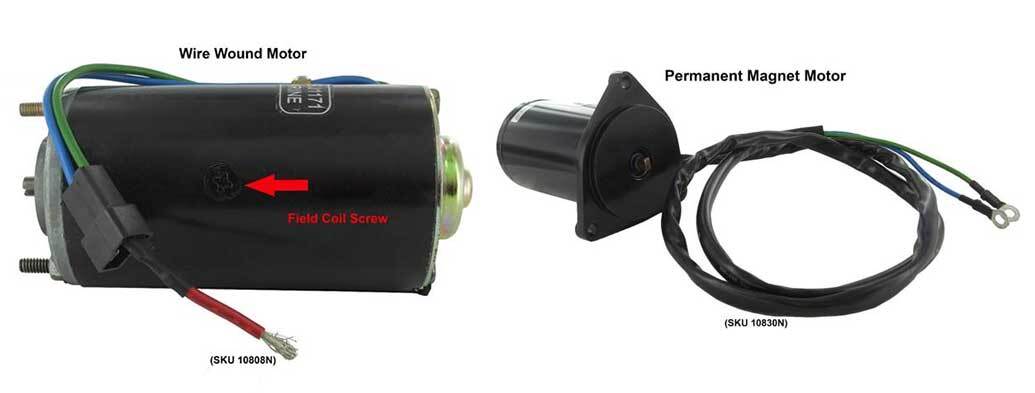

This test will work for any 12-volt, 2 wire,  permanent magnet trim motor. First, use the images below to accurately identify what type of motor you have. Before you test your motor, you will need to remove it from the boat.
This test will work for any 12-volt, 2 wire, permanent magnet trim motor.

What You Will Need

  • Battery Jumper Cables
  • Working Battery (Take one from a working vehicle if possible. Battery must have 12.5 volts. DO NOT use a jump box)
  • Vise to Hold Motor (You can have someone hold the motor if you don’t have a vise.)

Bench Testing

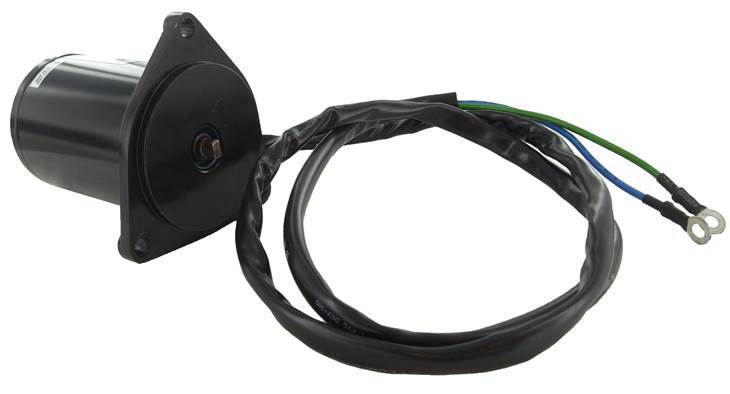

Step OnePlace your motor in the vise or have someone hold it carefully.

How to Test a 2 Wire Permanent Magnet Trim Motor

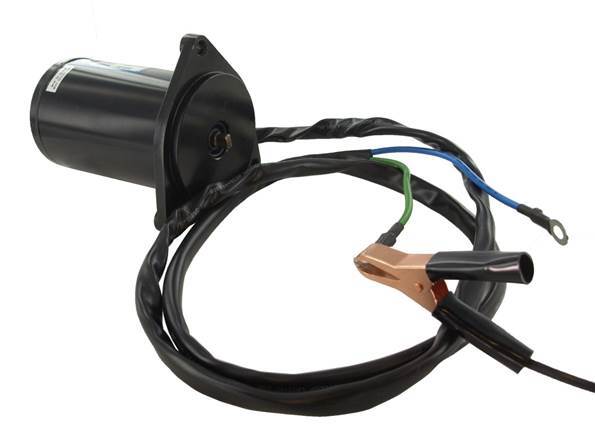

Step TwoAttach the negative (BLACK) battery cable to the to the negative terminal of the battery. The other end will need to be attached to the green wire on your motor.

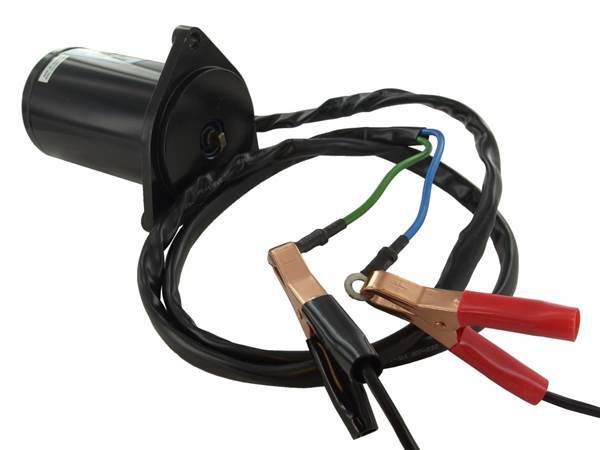

Step ThreeAttach the positive (RED) battery cable to the positive terminal on the battery. Touch the other end to the blue wire on the motor. As soon as you touch the battery cable to the blue wire, the motor should start to spin clockwise. If the motor fails to spin, then it is defective and needs to be replaced.

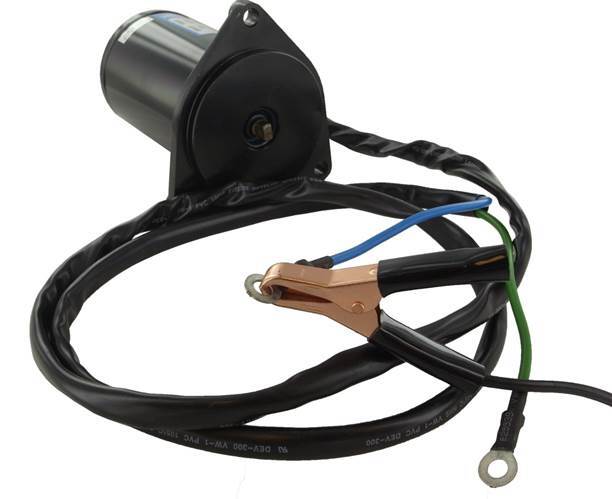

Step Four: Attach the negative (BLACK) battery cable to the negative terminal on the battery. The other end will need to be attached to the blue wire.

Step FiveAttach the positive (RED) Battery cable to the positive terminal of the battery. Touch the other end to the green wire. As soon as you touch the battery cable to the green wire, the motor should start to spin counter clockwise. If your motor fails to spin counter clockwise, then it is defective and needs to be replaced.
